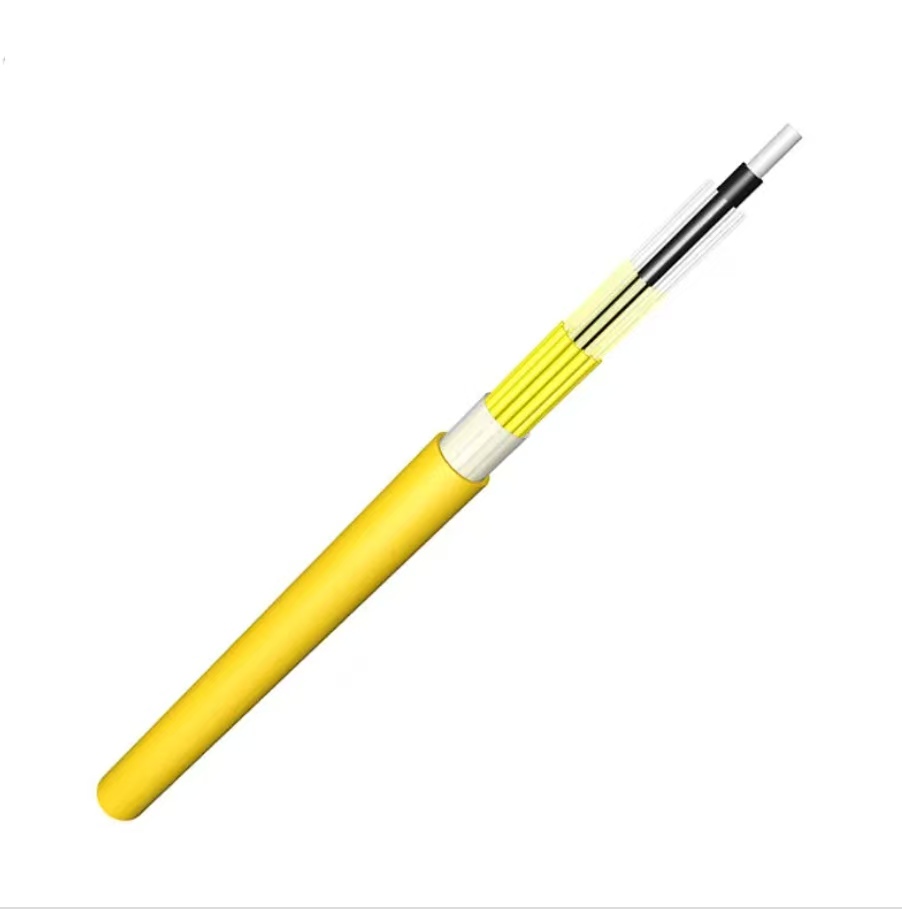

GJBFJV-I Indoor Multi-core Branch with CSM Fiber Optic Cable

GJBFJV-I Indoor Multi-core Branch with CSM Fiber Optic Cable

1. Place of Origin: China
2. Brand Name:Hoton Link
3.Categories:Cabling in Buildings
4. Minimum Order Quantity:100KM
5. Delivery time:5-25 Days

GJBFJV-I Indoor Multi-core Branch with CSM Fiber Optic Cable

Select the number of specifications

Please check the product information you want!

Product Detail


GJBFJV-I

Indoor Multi-core Branch with CSM Fiber Optic Cable for Cabling in Buildings


Introduction:

Optical cables for vertical wiring in buildings, which is a major component of the drop segment in FTTx networks,refer to the drop cables going from ducts in buildings into rooms. Vertical wiring is mainly applied to high-storey buildings, super high-storey buildings, buildings with high-density subscribers and large information processing centers such as data centers.
The multi-core branch cable Iuses several simplex optical cables （made of 900μm tight buffered fibre and aramid yarns) as optical sub-units. Sub-units are stranded around a non-metallic central strength member to form a cable core. Then a PVC sheath is extruded on the core.Other sheath materials are available on request.


Features:

  • High tensile strength due tp stranded structure and non metallic central strength member
  • All dielectric design,applicable to lightning prone areas
  • Anti-corrosion, water blocking, flame-retardant and environment-friendly


Product Series:

GJJA: 0.9mm Tight buffer

GJFJH: Duplex Tight buffer Fibers with Aramid yarns

GJFJBV: Flat Duplex Tight buffer Fibers with Aramid yarns

GJPFJV: Multi-core Tigh buffer Bundle with Aramid yarns

GJBFV-I: Multi-core Branch with CSM

GJBFJV-Il: Multi-core Branch without CSM

GJBFVH: Large Fibre Count Mixed Branch with CSM

GJPFH: Micro-tube Breakout with CSM

GJPFXJH: Breakout Tight Buffer fibers with FRP Strength

GJPFWQH: Micro-tube Breakout with FRP Strength

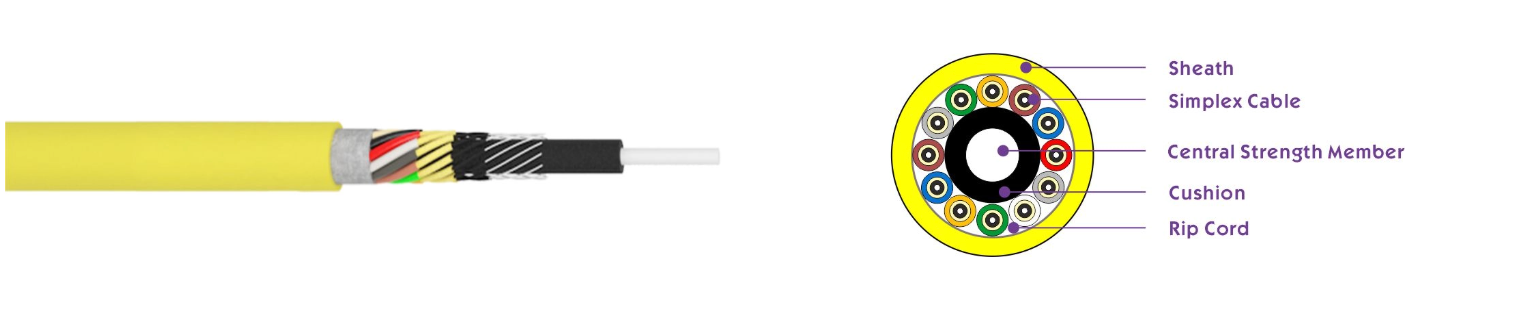

Cross Section:

Technical Characteristics:


GJBFJV-4Xn:

· Diameter: 7.2 mm

· Weight: 45.5 kg/km

· Tension (Long/Short): 200/660 N

· Crush Resistance (Long/Short): 300/1000 N/100mm

· Bending Radius (Dynamic/Static): 20D/10D


GJBFJV-6Xn:

· Diameter: 9 mm

· Weight: 63 kg/km

· Tension (Long/Short): 200/660 N

· Crush Resistance (Long/Short): 300/1000 N/100mm

· Bending Radius (Dynamic/Static): 20D/10D


GJBFJV-8Xn:

· Diameter: 10 mm

· Weight: 84 kg/km

· Tension (Long/Short): 200/660 N

· Crush Resistance (Long/Short): 300/1000 N/100mm

· Bending Radius (Dynamic/Static): 20D/10D


GJBFJV-12Xn:

· Diameter: 12.5 mm

· Weight: 148 kg/km

· Tension (Long/Short): 200/660 N

· Crush Resistance (Long/Short): 300/1000 N/100mm

· Bending Radius (Dynamic/Static): 20D/10D


Delivery Length:

Standard length:2000m;Other length availabe
