Indoor Fiber cables Flat Ribbon type LSZH 2.5*5.0mm Aramid Yarn Single mode cable fibra óptica

1. Place of Origin: China
2. Brand Name:Hoton Link
3.Categories:Cabling in Buildings
4. Minimum Order Quantity:100KM
5. Delivery time:5-25 Days
6.Payment Terms: 30%TT as deposit,70%Balance before shipping.
6. Delivery time:5-25 Days

Select the number of specifications

Please check the product information you want!

Product Detail

Indoor Fiber cables Flat Ribbon type LSZH 2.5*5.0mm Aramid Yarn Single mode cable fibra óptica

Characteristic: Indoor Fiber cables

Cable Type: Flat Ribbon type

Fiber Type: G.657.A1 / G.652.D

Jacket Material: PVC/LSZH
Total Fiber Count: 1-12F
Subunit Type: Fibers

Environmental Space: For indoor cables

Armor: No

Technical data:

Numbers of fibers: 1-12F

Fiber type: Single mode G.657.A1/OM1/OM2/OM3

Strength Member: Aramid Yard

Loose Tube: No

Filler Rope: No

Water Blocking Layer（Material）: No

Additional Strength Member（Material）：No

Outer Sheath: Low smoke zero halogen (LSZH)

Cable Diameter(±0.2mm): 2.0*5.0mm

Cable Weight(±10.0kg/km): 8kg

Attenuation coefficient : @ 1310nm≤0.35dB ; @ 1550nm ≤0.2dB

Min. bending radius Without Tension: 10.0×Cable-φ

Min. bending radius Under Maximum Tension: 20.0×Cable-φ

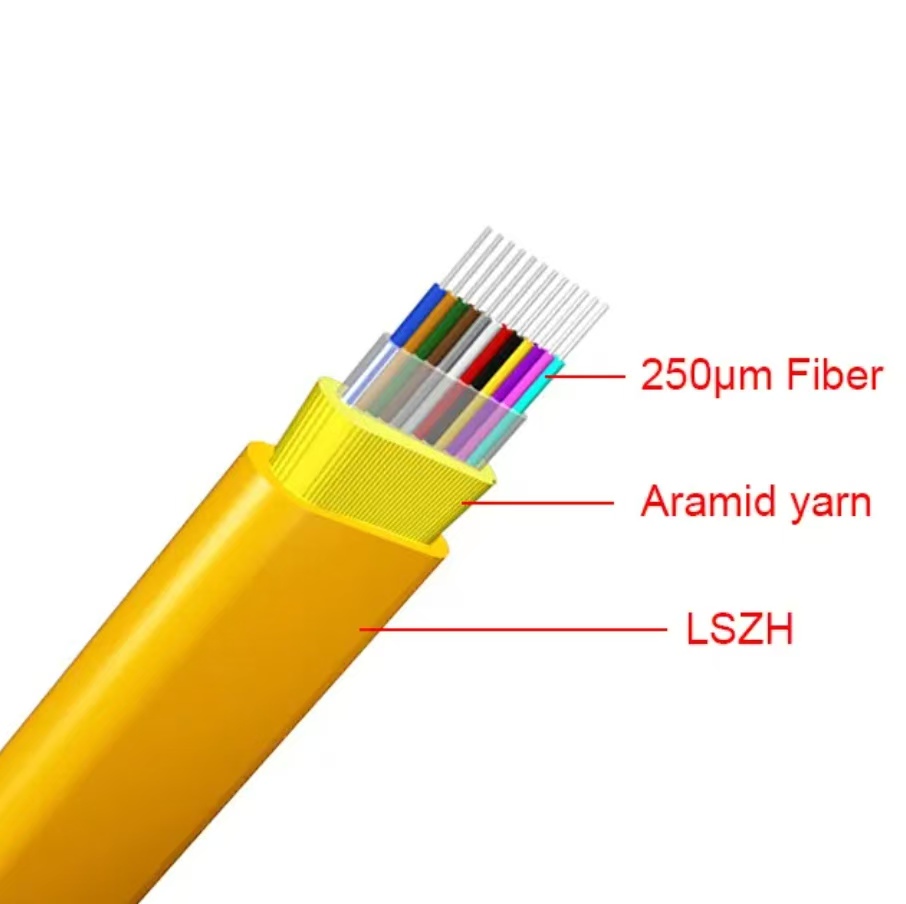

Description:

ﬂat ﬁber ribbon cable use ﬁber ribbon as optical communication medium,the ﬁbre ribbon wrapped with a layer of aramid yarn as strength member units,and the cable is completed with a ﬂat PVC or LSZH(Low smoke,Zero halogen,Flame-retardant) jacket.

Application:

Ribbon optical ﬁbre jumper and pigtail

Indoor cable distribution for any purpose

Interconnect between optical ﬁbre cable distribution equipment

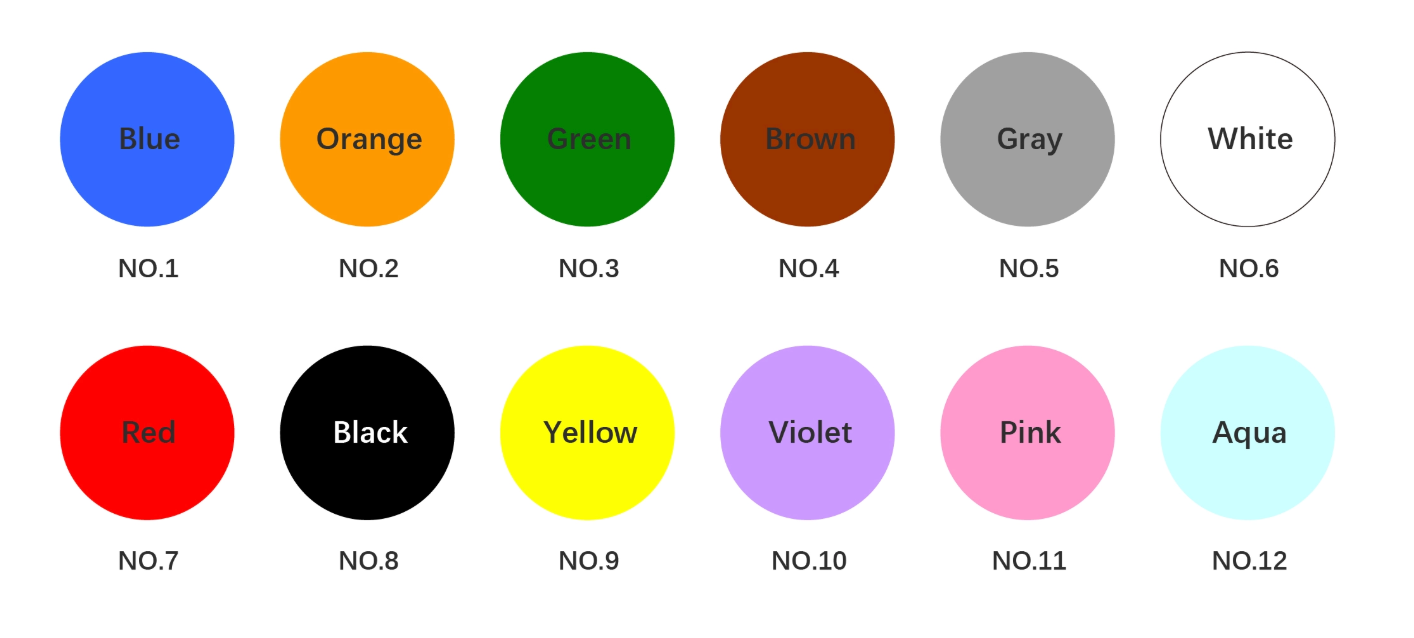

Fibre and Jacket Colors:

Single mode optical fiber (ITU-T Rec. G.652.D):

Fiber Type: Single mode

Fiber Material: Doped silica

Attenuation Coefficient:

@ 1310 nm: ≤ 0.35 dB/km
@ 1383 nm: ≤ 0.32 dB/km
@ 1550 nm: ≤ 0.21 dB/km
@ 1625 nm: ≤ 0.24 dB/km

Point Discontinuity: ≤ 0.05 dB

Cable Cut-off Wavelength: ≤ 1260 nm

Zero-Dispersion Wavelength: 1300 ~ 1324 nm

Zero-Dispersion Slope: ≤ 0.092 ps/(nm².km)

Chromatic Dispersion:

@ 1288 ~ 1339 nm: ≤ 3.5 ps/(nm.km)
@ 1271 ~ 1360 nm: ≤ 5.3 ps/(nm.km)
@ 1550 nm: ≤ 18 ps/(nm.km)
@ 1625 nm: ≤ 22 ps/(nm.km)

PMDQ (Quadrature Average): ≤ 0.2 ps/km¹/

Mode Field Diameter @ 1310 nm: 9.2 ± 0.4 μm

Core / Clad Concentricity Error: ≤ 0.5 μm

Cladding Diameter: 125.0 ± 0.7 μm

Cladding Non-Circularity: ≤ 1.0%

Primary Coating Diameter: 245 ± 10 μm

Proof Test Level: 100 kpsi (= 0.69 GPa), 1%

Temperature Dependence:

0°C ~ +70°C at 1310 & 1550 nm

≤ 0.1 dB/km attenuation
